A multi-camera green-screen virtual studio, inside Unreal Engine.

Virtual Studio Kit is a UE 5.8 plugin that builds a complete broadcast operator layer natively into Unreal: SDI cameras in, keyed talent standing in a real-time virtual set, virtual camera moves with a 16-preset shot box, a BT.709-correct program feed out - and a full show-control surface: editor console, browser control boards, Stream Deck, Blueprint control bus.

Install guide Read the docs
Coming soon - the plugin is in final field testing and will be released shortly.
VSK Cameras console Billboards & Keyer panel VSK Project panel VSK Video Hub
The VSK health strip - one glance tells you the show is safe. CSS replica, not a screenshot.
What's in the kit

Everything between the camera and the program feed.

Operator console

One dockable panel runs the show: program cut with tally, 16-preset shot box, ARM A/B camera moves, easing, transport, timing & speed, overlays, scenes.

docs →

Chroma keyer + clean plate

Per-billboard keyer with clean-plate difference keying, matte controls, despill, light wrap, edge color correction and diagnostic monitor views.

docs →

Billboard grounding

Contact AO, a light-reactive projected floor shadow, native Lumen reflections and a lift control - so keyed talent actually stands in the set.

docs →

SDI in / out (DeckLink)

Camera inputs auto-wake at Play, per-input frame delay, and a BT.709-correct program output - the whole chain created by one Studio Setup button.

docs →

NDI in / out

Zero-dependency NDI: discovered sources appear in every video picker, and the program feed publishes as an NDI sender (video). Needs the free NDI runtime.

docs →

Scenes & shot box

One-button full-studio snapshots - billboards, cameras, keyer, grounding - recalled live, plus a 16-preset A/B shot box per camera channel.

docs →

Video Hub + Quick Media

Route SDI, program, files, uploads or NDI onto any screen in the set. Drag-drop media shelf, 6-slot cut banks, per-screen crossfade.

docs →

Control bus + Blueprint nodes

Named channels with a full family of typed operator pins - Trigger to Transformation - read and written from Blueprints with Get/Set VSK nodes.

docs →

Web control boards

A modular browser remote at :8090/remote - boards and tabs the operator designs on the page itself, from any phone or laptop on the LAN.

docs →

Audio mixer

SDI camera audio and WASAPI interface strips: fader, split L/R meters, mute/solo, AFV, channel routing, lip-sync delay, EQ/gate/comp - operator monitoring isolated from the show mix. SDI embed of program audio is in final field testing.

docs →

Recording

MP4 (H.264) and MOV (ProRes) via ffmpeg plus PNG/EXR/JPG/BMP sequences with alpha - color-matched to the viewport, audio muxed in.

docs →

Show files

One .vskshow JSON carries the entire studio - settings, scenes, boards, bindings, bus values, even shelf media - with self-healing import.

docs →
The interface

Plugin panels

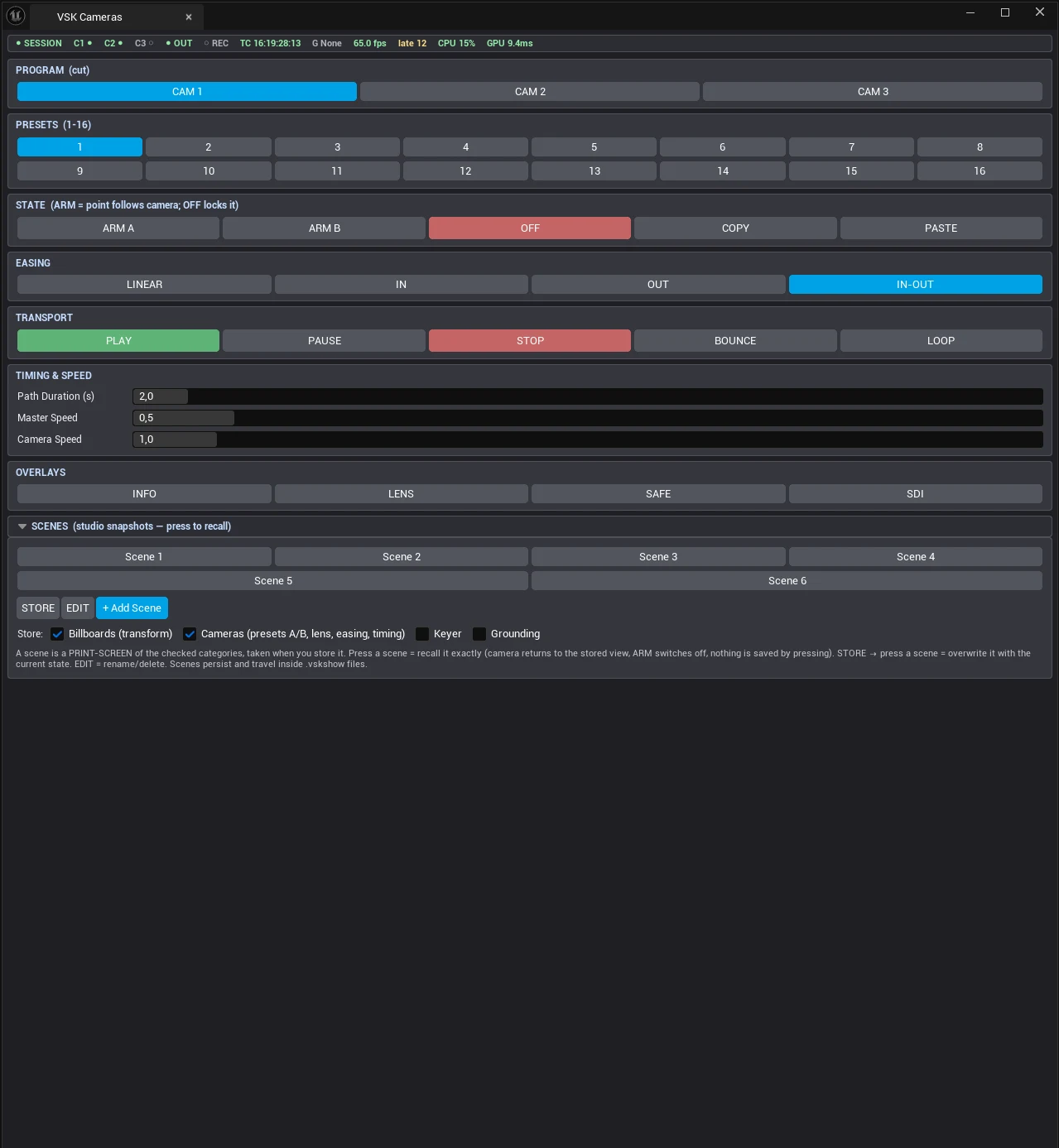

VSK Cameras - operator console
VSK Cameras - operator console Program cut with tally, presets 1-16, ARM A/B camera moves, easing, transport, timing & speed, overlays and scene snapshots.

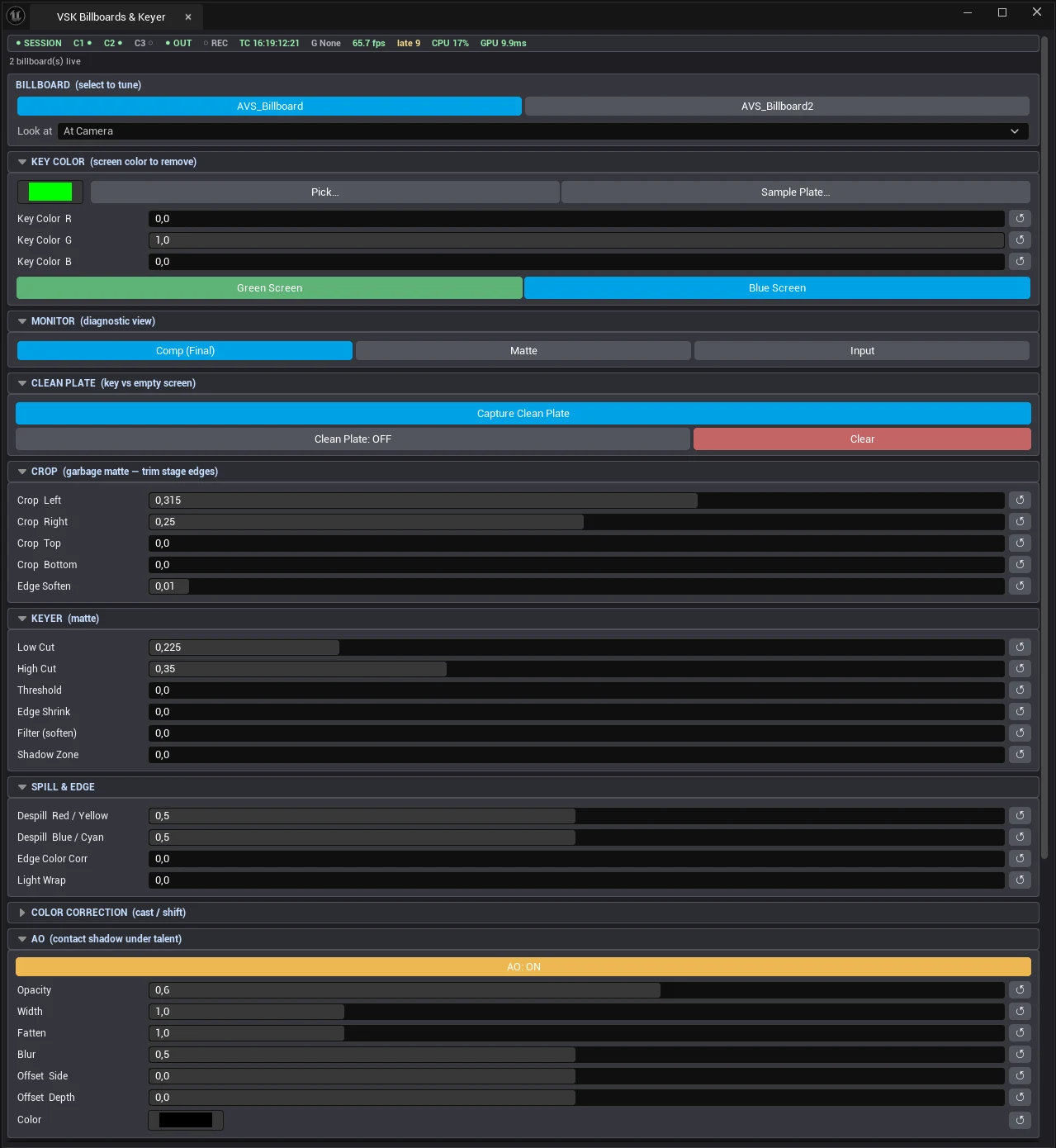

Billboards & Keyer
Billboards & Keyer Key color with green/blue presets, clean plate, diagnostic monitor views, crop, matte controls, despill & light wrap, color correction and contact AO.

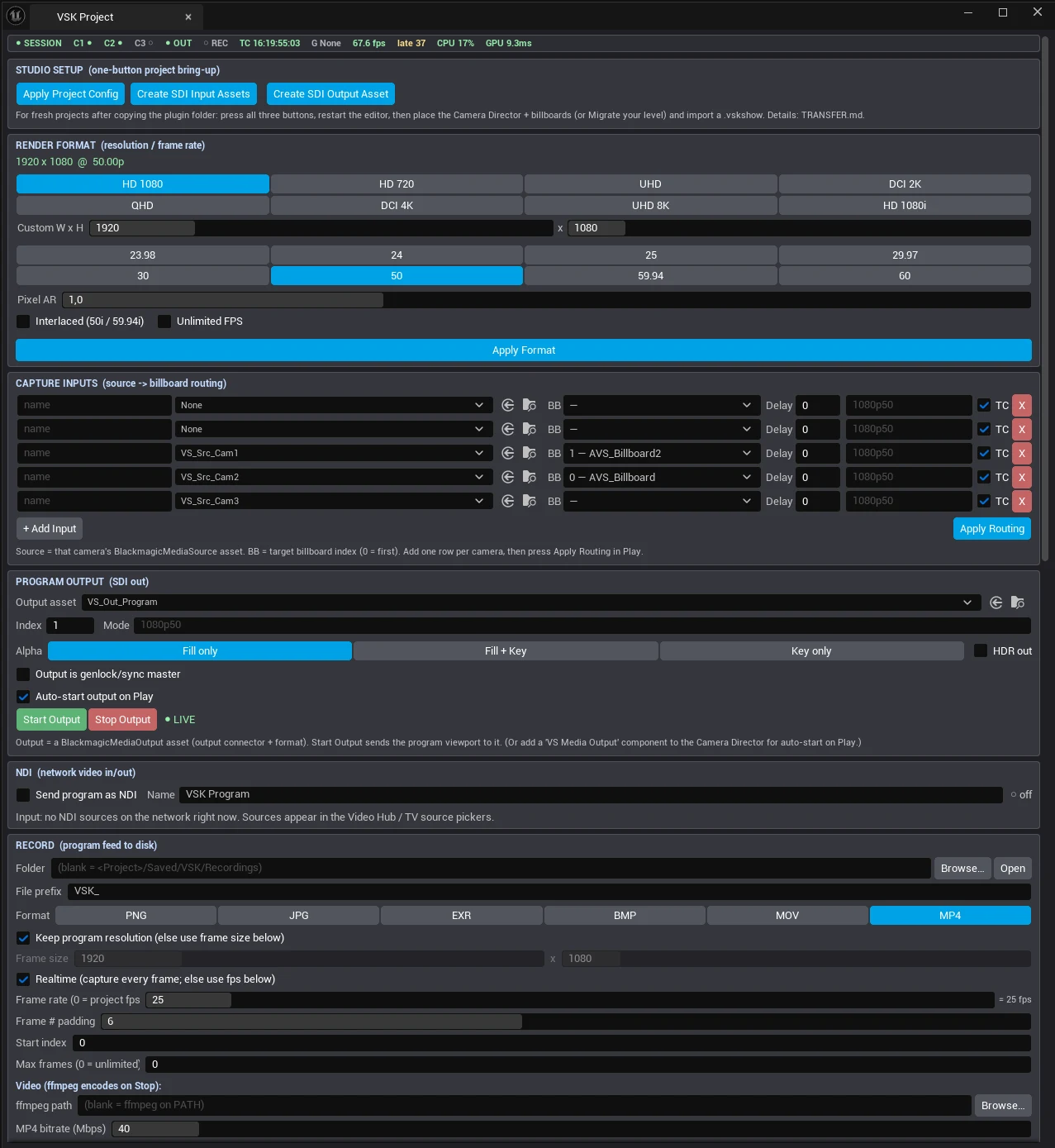

VSK Project
VSK Project One-button Studio Setup, render format, capture inputs with per-camera delay, SDI program output, NDI sender and recording settings.

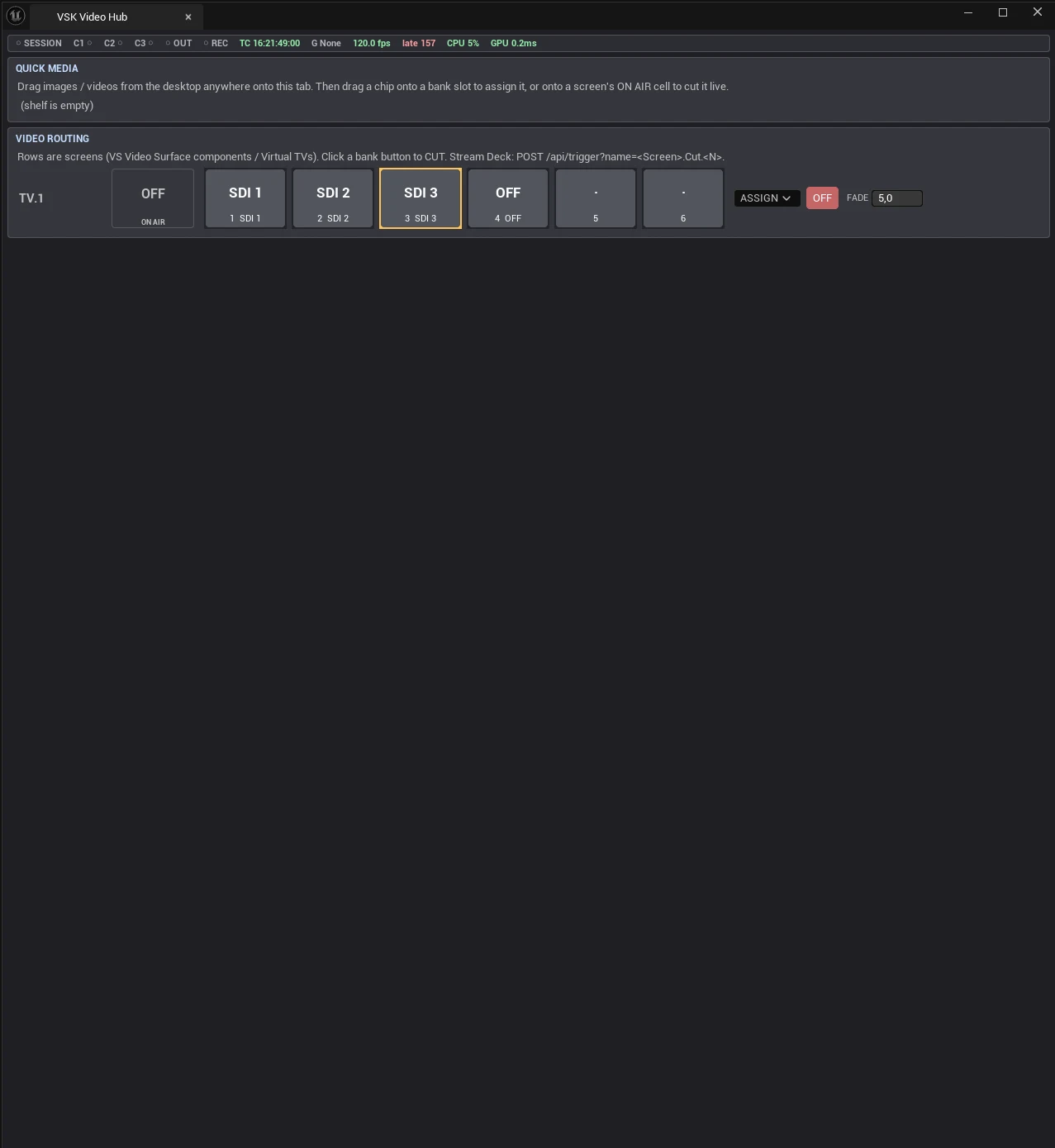

VSK Video Hub
VSK Video Hub Quick Media drag-and-drop shelf, screen rows with six-slot cut banks, ON AIR preview and per-screen crossfade.
